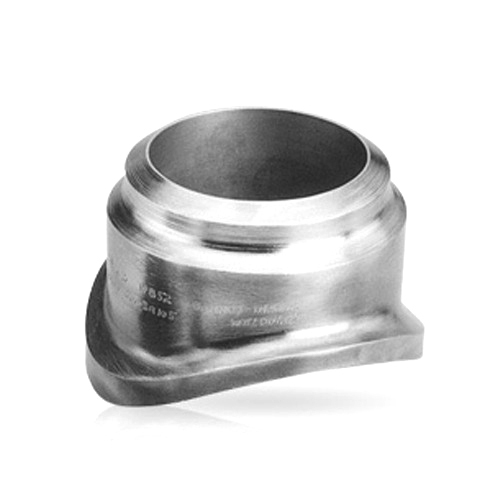

The Olets are manufactured using best quality material and are appreciated for features such as dimensional accuracy and excellent durability. These pipe fittings that are specifically used in various industries for different applications. Owing to corrosion and temperature resistance, these olets are used in high temperature applications in oil and gas industry.
Features :
|
|
Materials
Stainless Steel ASTM A182 F304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L
Carbon Steel ASTM A105, A105N, A694 F42, 46, 52, 56, 60, 65, 70, A350 LF3, A350 LF2
Alloy SteelASTM A182 F1, F5, F9, F11, F22, F91
Others Monel, nickel, inconel, hastelloy, copper, brass, bronze, titanium, tantalum, bismuth, aluminum, high speed steel, zinc, lead
Class 150, 3000, 6000, 9000
We offer Reducer Insert in 3000# and 6000# as per industry standards. These Steel Reducer Inserts are widely used in various engineering, piping and construction works. The Reducer Insert Fitting also support the standard socket welding fittings for making combination of pipe line reductions in a much quicker and economical manner. Our Reducer Inserts are up of superior quality raw material thus they provide the needed strength and durability.
We supply a range of Forged Steel Outlet Fittings – Sockolets 3000# & 6000# including Outlet Sockolet, Steel Sockolet and Forged Sockolet in various grades of materials and dimensions as required by the clients. The applicable run pipe sizes for Sockolets 3000# are from outlet to 36″. Our customers can select the types and sizes to meet almost any drive requirement.
We supply and export socket welding fittings that exhibit superior functioning. These socket welding pipe fittings are designed & developed to meet diverse working conditions. These steel socket welding fittings provide permanent welded connections for critical applications.
We supply and export forged threaded fittings that exhibit superior functioning. These threaded pipe fittings are designed & developed to meet diverse working conditions. These threaded fittings provide permanent welded connections for critical applications.
| DN | Nominal Pipe Size | Center-to -End Elbows, Tees, Crosses, A |
Center-to- End 45 deg Elbow, C |
Outside Diameter of Band, H |
Min. Wall Thickness, G |
Min Length of Thread [Note (1)] |
|||||||||
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1 1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1 1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 84 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2 1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 80 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
