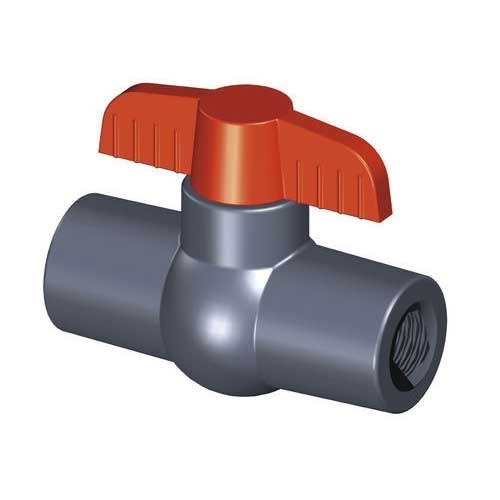

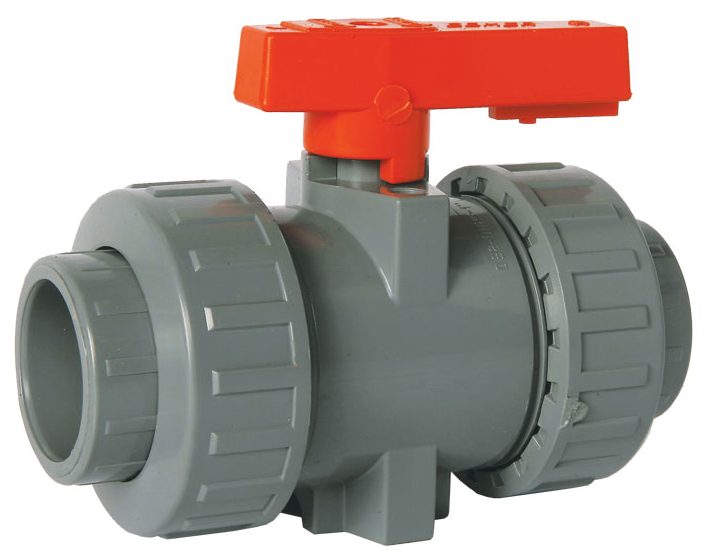

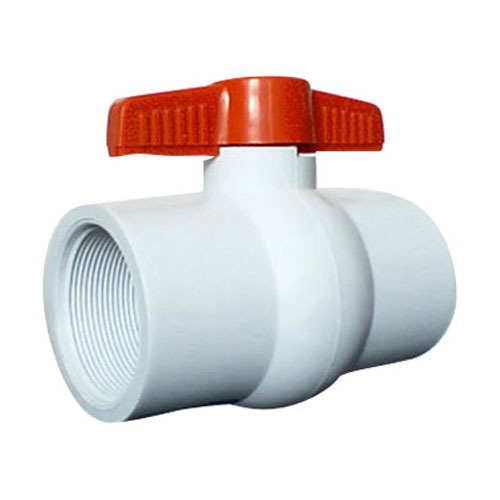

Plastic Valves

We offer a wide range of PP ball valves flange end, that are fabricated using the best grade materials. These ball valves are appreciated for their pressure resistant ability and high durability. Available in various sizes, thickness and lengths, these are designed as per the ANSI, BS & DIN standards.

Technical Specification:
Construction 3 piece design, 1 piece stem (spindle), full bore, Teflon seated
Standard As per manufacturer’s
Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
M.O.C. Available

  • PP (Polypropylene)
  • PVDF (Polyvinylidene Fluoride)
  • HDPE (High Density Polypropylene)

Size Inch mm OD ID L T H H1
1 – 2 15 95 15 118 15 55 131
3 – 4 20 112 190 129 17 65 131
1 25 118 24 153 19 89 161
1 1/2 40 137 37 178 0 20 105 204
2 50 164 48.5 222 22 120 204
2 1/2 65 180 62.5 227 24 141 262
3 80 198 72 2540 25 150 262
4 100 225 99 295 26 172 312
6 150 302 150 431 31 245 305
8 200 360 200 462 32 285 305
No. Description Material Qty.
P1 Body PP / HDPE / PVDF 1
P2 Side Piece/Connector PP / HDPE / PVDF 2
P3 Ball PP / HDPE / PVDF 1
P4 Stem/Spindle M.S. / S.S. / PP / HDPE / PVDF Coated 1
P5 Seat Ring PTFE 2
P6 Connector Seal Neoprene Rubber / PTFE / PVC 2
P7 Stem Seal Ring PTFE 1
P8 Stem O-Ring Neoprene 1
P9 Stud, Nut & Washer M.S. (En8)/S.S. 316 Req.
P10 Nut Cap PP Req.
P11 Handle M.S. PP Coated 1
P12 Handle Hex, Pin M.S. (En8)/S.S. 316 1
P13 Handle Cap PP 1
