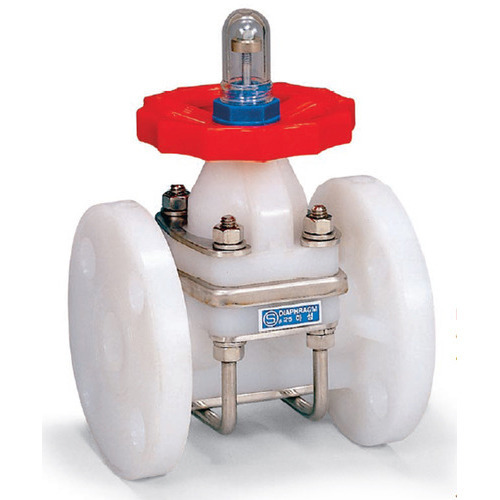

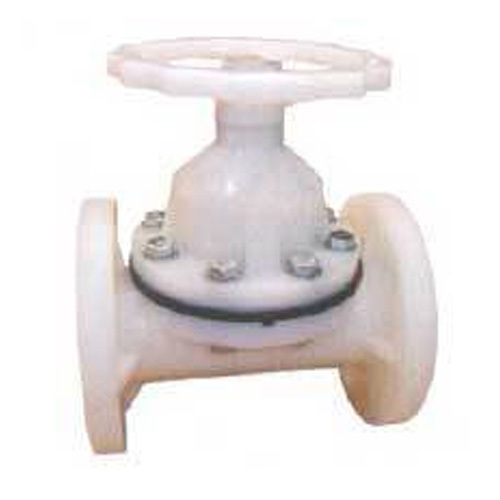

PP Diaphragm Valve


We supplier and export a qualitative range of PP diaphragm valves flange ends, that are designed as per specific requirements of the clients. Widely used in various industrial applications, these are available in different sizes, lengths and thickness.

Technical Specification:
Construction Weir type design, soft seated, raising stem
Standard As per manufacturer’s
Connection End Flanged as per ANSI B 16.5 (150#) & BS 10 (Table D/E/F) & DIN STD.
M.O.C. Available

  • PP (Polypropylene)
  • PVDF (Polyvinylidene Fluoride)
  • HDPE (High Density Polypropylene)

Size
Inch mm OD L T H
1 – 2 15 96 122 16 82
3 – 4 20 100 122 17 105
1 25 112 141 20 114
1 1/2 40 134 166 21 173
2 50 153 200 24 203
2 1/2 65 184 245 24 218
3 80 184 245 24 218
No. Description Material Qty.
P1 Body Polypropylene 1
P2 Bonnet Polypropylene 1
P3 Diaphragm Neoprene 1
P4 Stem M.S./S.S. 1
P5 Nut M.S./S.S. 1
P6 Compressor Aluminum / C.I. 1
P7 Pin M.S./S.S 1
P8 Hand Wheel Polypropylene 1
P9 Nut, Bolt & Washer M.S./S.S. 4
P10 Diaphragm Stud. Brass 1
P11 Cap Polypropylene 1
