Size | 20 to 150 NB |
Body | Polypropylene |
Glass | Toughened borosil glass |
Seat | PTFE |
Ends | Flanged end |

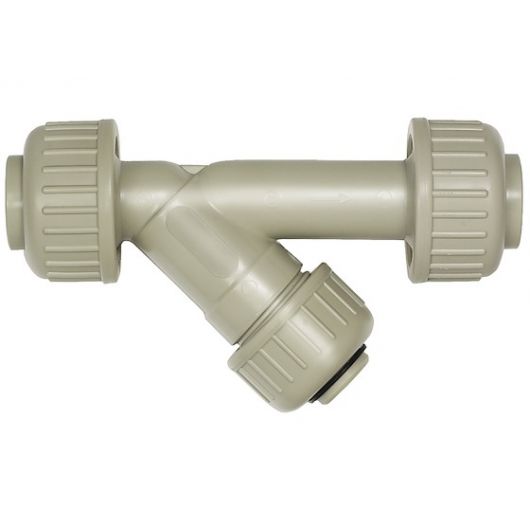

PP Strainer
We are offered by PP Strainer valves flange ends are made using high quality PP, PVDF material and neoprene rubber. Known for their stress tolerance and surface hardness, these are designed in compliance with ANSI, BS and DIN standards.
