Safety Valves


Safety Valves Are you looking for a Suitable Supplier for Safety Valves? Various Safety Valves Safety Valvesstandards full range,fast delivery, contact Global Steel & Engg for all types of Safety Valves. , Safety Valves suppliers with a wide range of Stainles Steel Safety Valves, Bronze Safety Valves, Cast Steel Safety Valves, Cast Iron Safety Valves, The strength of our company lies in the strength of personnel who produce quality work. We believe in cohesiveness and team effort. The company is following the policy of continuous up-gradation of technology and processes while maintaining its cost effectiveness by making optimum use of its resources and goodwill.

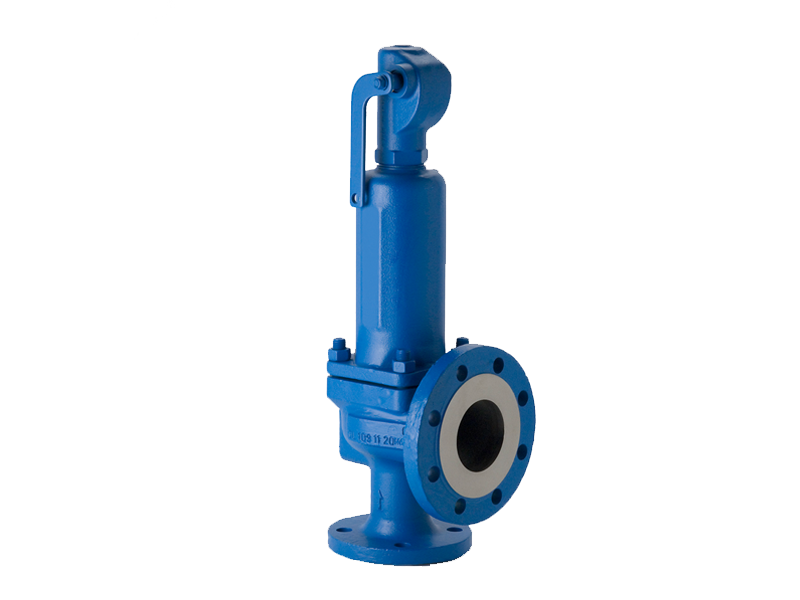

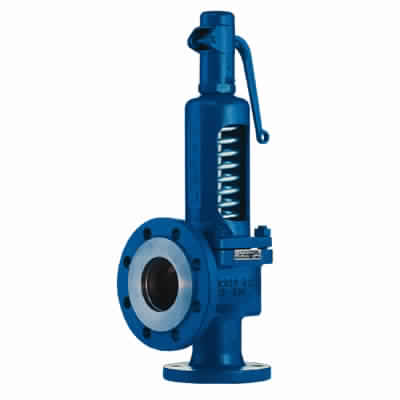

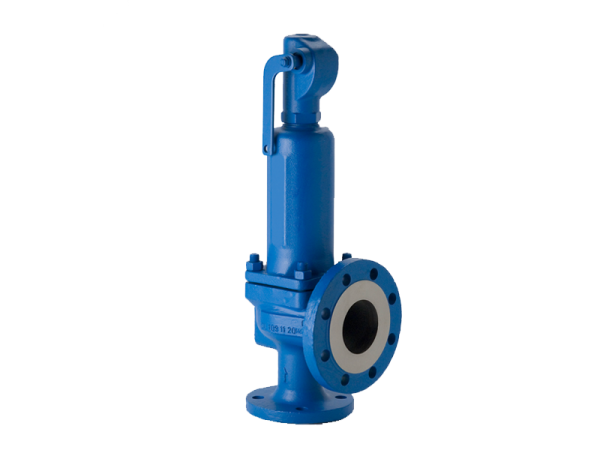

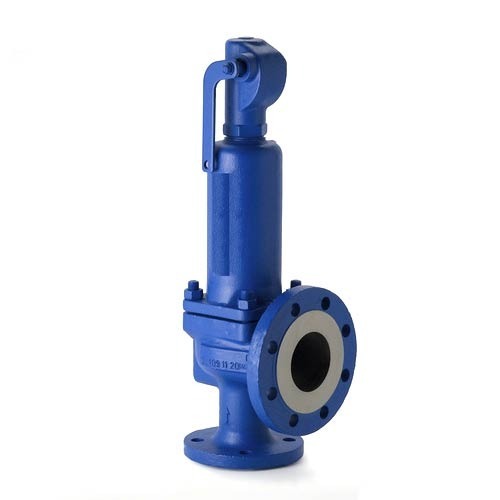

We offer wide range of Spring Loaded Safety Valves that is constructed using Alloy Steel, Carbon Steel and Stainless Steel material. These are capable of holding pressure ranging from 0.50 to 400 bar, and temperature range from – 196ºC to 550ºC. Smaller model of VSEO handles small discharge capacities and larger model of VSR take care of large capacities with efficient ease. We avail these Valves in conventional and bellow seal type designs. VSR series valve that we offer are certified with ASME Sec 3 and is applicable widely in nuclear power plants.

Salient Features are as follows:

  • Design, Mfg. & Tested as per API 520, 521, 526, 527 standards
  • Models Comply to ASME Section VIII of boiler & pressure vessels code
  • Registered under Indian Boiler Regulation (IBR)
  • Also approved by chief controller of explosives department (CCOE)
  • Conventional or Balance Bellows Design
  • Complete Teflon (FEP/PFA). Lining for highly corrosive services
  • Soft Seat arrangement for Tight Shut-Off.
  • Weight & lever type Safety Relief Valves are offered for low set pressure and high discharge capacity
  • All Thermal Relief Valves (BTS-10 & BTS-11) models are offered in Investment Casting (1/2″ to 2″)
  • Stellited Trims for high Pressure & Temperature
  • Safety Relief Valves are Inspected, Tested, & Certified by BV / DNV / TUV / MECON / IBR / CCE / BAX Council
  • Size Range from ½” x ¾” to 10″ x 14″
  • Material of Construction CI / CS / SS 304 / SS 316 / GM / Alloy Steel.
