Sizes
1/2″ NB – 60″ NB
Dimensions Standard/Pressure Ratings
ANSI, MSS-SP-44, BS3293, API 605
150lb – 2500lb BS10 Table D, E, F & H
DIN PN6, 10, 16, 25 & 64
Types :

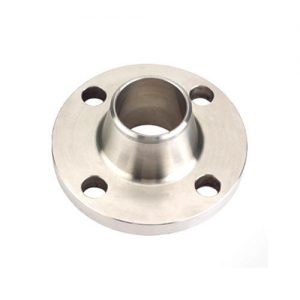

Weld Neck (WNRF)
Socket Weld (SWRF)
Slip On (SORF)
Blind (BLRF)
Lap Joint

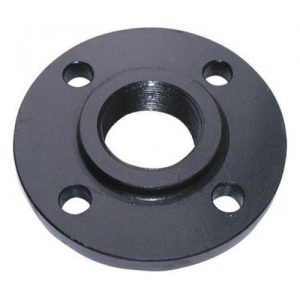

Screwed ( Threaded )
Long Weld Neck
Reducing

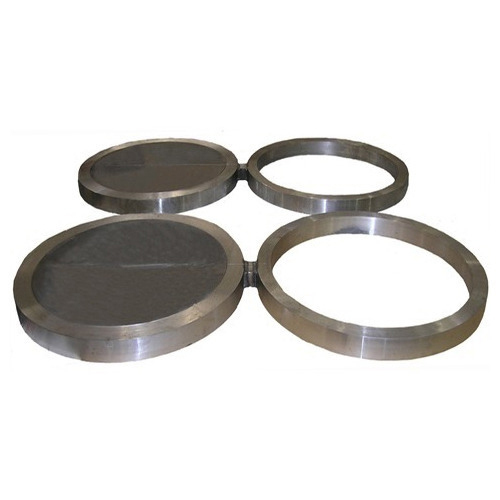

Spectacle Blind
Ring Joint
Large Dia Ring
Orifice
Girth Flang
| Material | Grades |
| Nickel Alloys Flanges | UNS 2200, 2201, 4400, 6600, 6601, 6625, 8020, 8825, 10276. |
| Duplex & Super Duplex Flanges | A 182 F 44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel Flanges | A 182 / A 240 304/L, 310, 316/L, 316Ti, 317/L, 321/H, 347/H, 904/L |

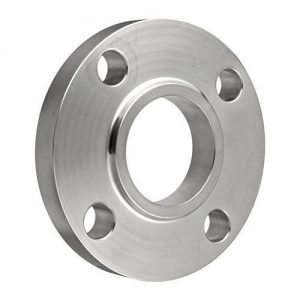

| Alloy Steel Flanges | A 182 / A 387 F1, F5, F9, F11, F12, F22, F91 |
| Copper Nickel Flanges | UNS C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30) |
| Carbon Steel Flanges | A 105 |
| DIN 2655 / 2656 | DIN 86029 / 86030 |
| DIN 2655 / 2656 | DIN 86029 / 86030 |
| DIN 2655 / 2656 | DIN 86029 / 86030 |
| DIN 2655 / 2656 | DIN 86029 / 86030 |
