XM 19 Stainless Steel

Product Details:
Packing Type Shrink wrapping, Bubble wrapping, Carton boxes, Wooden crates, pallets, boxes
Size As Per Requirement
Form Round, Rectangle, Flat
Application Automobile Industry
I deal in New Only

It is available in various sizes & specifications. XM 19 is a nitrogen strengthened austenitic stainless steel which has excellent corrosion resistance in comparison to type 316 & 316L. It provides higher corrosion resistance & higher strength. XM 19 can be a confusing alloy to work with because there are three different types of conditions used for numerous applications. The three different types of condition are annealed, as rolled & high strength.

XM 19 Application
It is useful in many industries such as Chemical Industries, Fertilizer Industries, Medical Industries, Petrochemical Industries, Food Processing Industries, Pulp & Paper Industries etc.

XM 19 Stainless Steel Availbility in

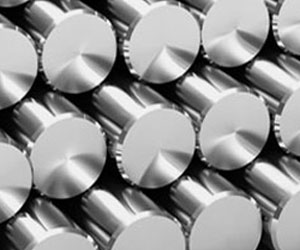

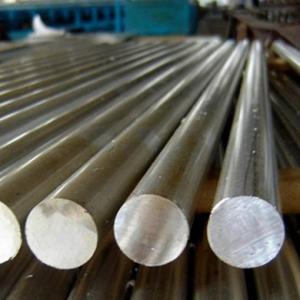

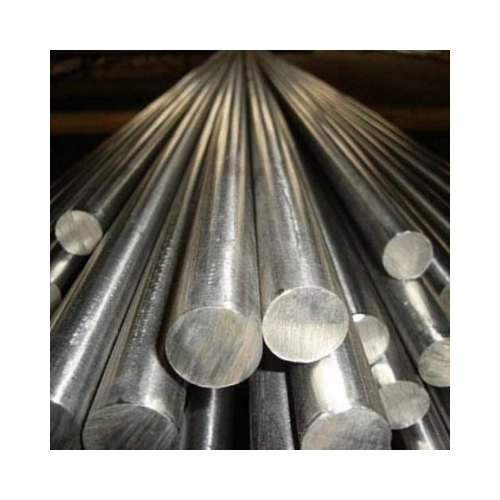

XM 19 Rod, XM 19 Pipe, XM 19 Flange, XM 19 scrap.

XM 19 Chemical Composition
Carbon; 0.060max
Sulfur; 0.010max
Manganese; 4.0-6.0
Chromium; 20.5-23.5
Phosphorus; 0.040max
Nickel; 11.2-13.5
Molybdenum; 1.5-3.0
Silicon; 1.00max
Nitrogen; 0.20-0.40
Niobium; 0.10-0.30
Vanadium; 0.10-0.30

XM 19 Mechanical Properties
Tensile Strength; 690Mpa, 100ksi
Yield Strength; 380Mpa, 55ksi
Elongation; 35%
