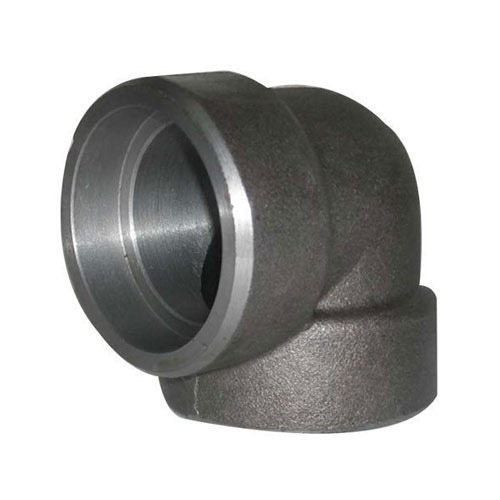

Forged Threaded Fittings


We supply and export forged threaded fittings that exhibit superior functioning. These threaded pipe fittings are designed & developed to meet diverse working conditions. These threaded fittings provide permanent welded connections for critical applications.

DN Nominal Pipe Size Center-to
-End
Elbows,
Tees,
Crosses, A
Center-to-
End 45
deg Elbow, C
Outside
Diameter
of Band, H
Min.
Wall
Thickness, G
Min
Length
of
Thread [Note (1)]
2000 3000 6000 2000 3000 6000 2000 3000 6000 2000 3000 6000 B L2
6 1/8 21 21 25 17 17 19 22 22 25 3.18 3.18 6.35 6.4 6.7
8 1/4 21 25 28 17 19 22 22 25 33 3.18 3.30 6.60 8.1 10.2
10 3/8 25 28 33 19 22 25 25 33 38 3.18 3.51 6.98 9.1 10.4
15 1/2 28 33 38 22 25 28 33 38 46 3.18 4.09 8.15 10.9 13.6
20 3/4 33 38 44 25 28 33 38 46 56 3.18 4.32 8.53 12.7 13.9
25 1 38 44 51 28 33 35 46 56 62 3.68 4.98 9.93 14.7 17.3
32 1 1/4 44 51 60 33 35 43 56 62 75 3.89 5.28 10.59 17.0 18.0
40 1 1/2 51 60 64 35 43 44 62 75 84 4.01 5.56 11.07 17.8 18.4
50 2 60 64 83 43 44 52 75 84 102 4.27 7.14 12.09 19.0 19.2
65 2 1/2 76 83 95 52 52 64 92 102 121 5.61 7.65 15.29 23.6 28.9
80 3 86 95 106 64 64 79 109 121 146 5.99 8.84 16.64 25.9 30.5
100 4 106 114 114 79 79 79 146 152 152 6.55 11.18 18.67 27.7 33.0

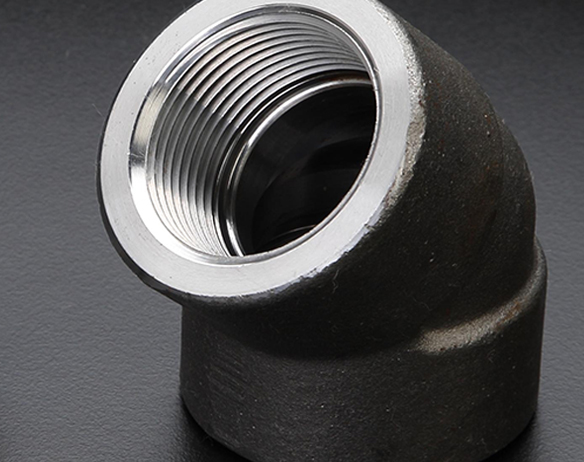

Nickel Alloy
ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ), UNS 4400 (MONEL 400 ), UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

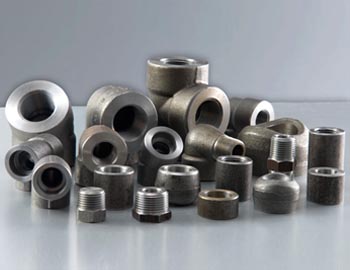

Copper Alloy
ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C 83600.
ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 ( CU -NI- 90/10), C 71500 ( CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.
Stainless Steel
ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Duplex Steel
ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

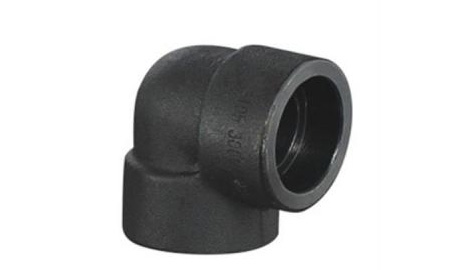

Carbon Steel
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.

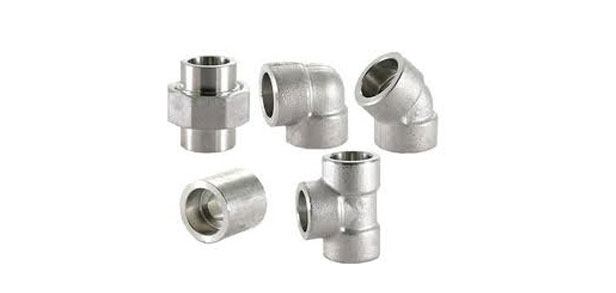

Alloy Steel
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
